Indy: Evals and AI Agents to search the Amazon for lost civilizations

My submission for OpenAI's City of Z competition

The challenge entails finding evidence of pre-Columbian civilizations in the Amazon using OpenAI’s models and open-access data sources like LIDAR, multispectral imagery, and historical records. Here’s what I did and what I found!

My efforts were based on 3 simple ideas

Based on my research, the 2 best ways of finding strong evidence of Pre-Columbian civilizations would be to detect geoglyphs/earthworks using lidar or detect signs of terra preta using multispectral data. All other data sources are either too sparse or not informative enough.
Tokens are cheap, o3 is pretty smart, and if you spend more tokens, you should expect to see better results! So I wanted to construct my agents such that they spend more time (tokens) on the most interesting sites!

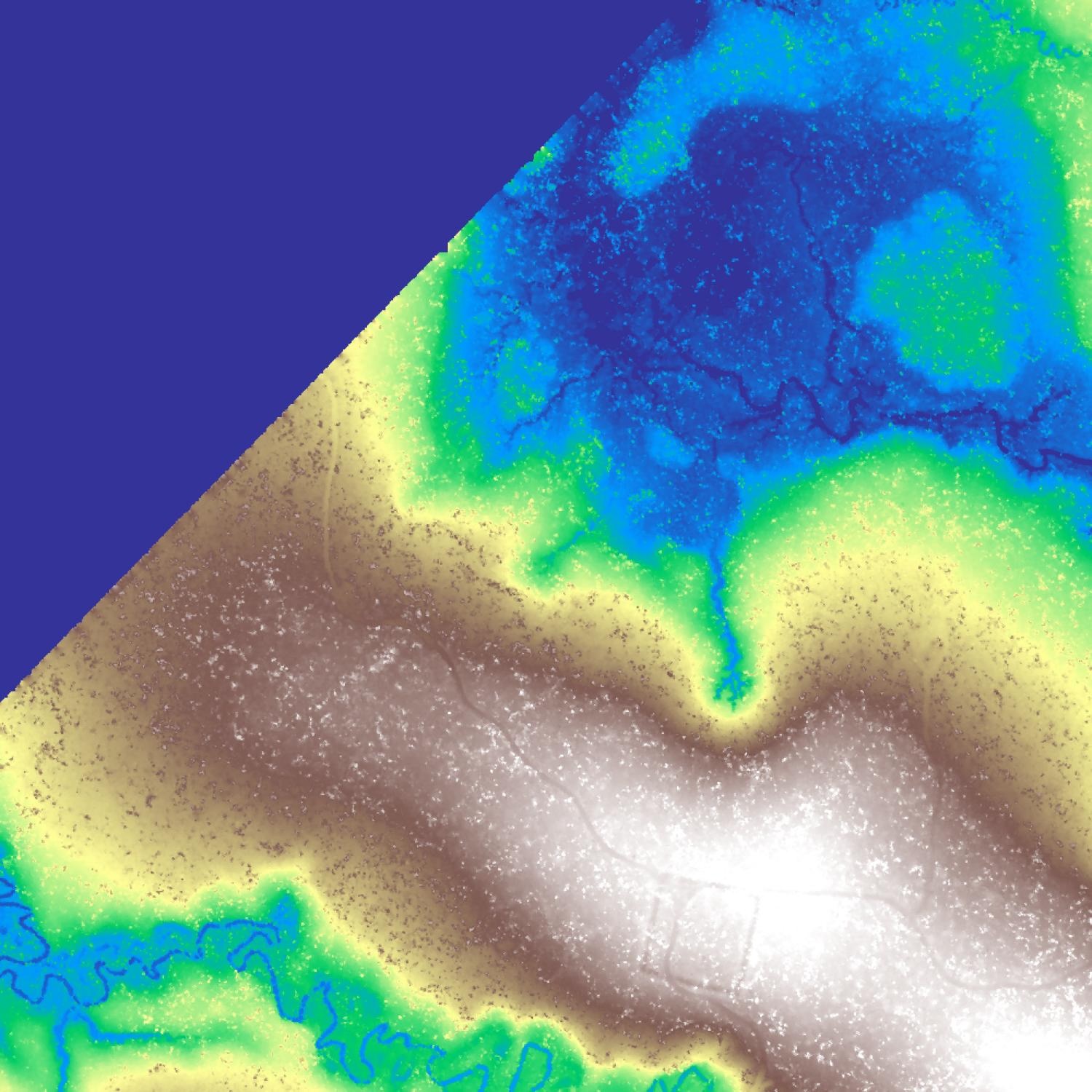

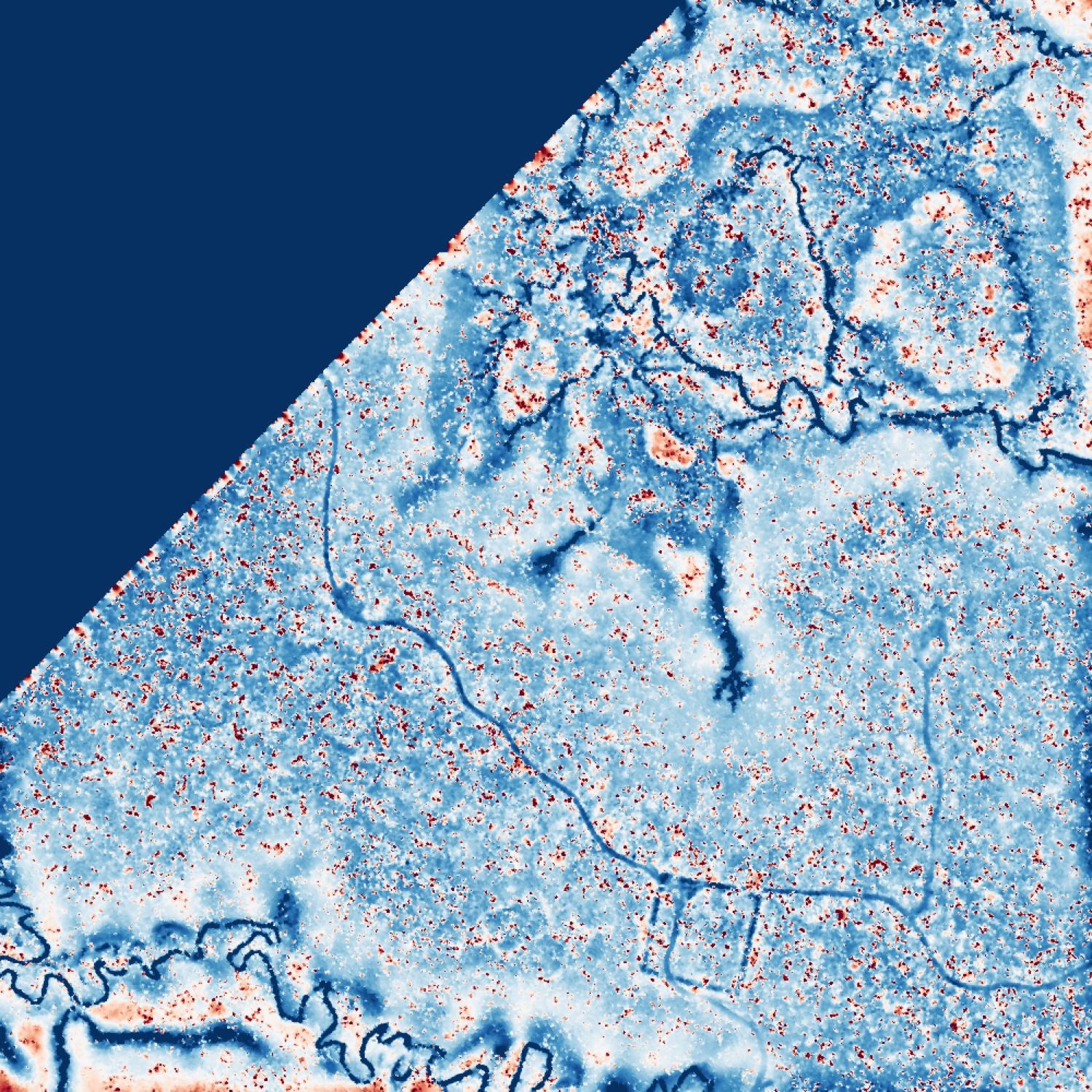

Constructing good evals: You can give o3 an image of the DEM from a lidar tile and ask it to find patterns in it. But how can you be confident in its answer? It is critical to tune your prompts on a set of tiles where we know confirmed archaeological sites exist AND where we know nothing exists. Only after this is done can we be confident (relatively) in our results! Moreover, by compiling a list of all known sites, we can be more confident that we are not rediscovering anything.

What I did

Aggregated lidar tile data from 14 datasets (3787 total tiles) and processed them to create DEM and z-score normalized images
Compiled a list of confirmed archaeological sites within the Amazon region (4787 total earthwork and terra preta sites)
Constructed Evals for earthwork detection using lidar data.
Constructed Evals for terra preta detection using Sentinel 2, HydroSHEDS, CHIRPS, and Mapbox data.
Ran o3 (with prompts and tools tuned via evals) on 3749 lidar tiles (all our tiles minus the ones we used for our evals). These tiles did not have any confirmed archaeological sites within them.
Prepared a curated list of 200+ papers for Deep Research queries

What I found

507 probable and 8 very likely new earthwork sites in lidar tiles with no previously reported archaeological sites!*

We ran our eval-tuned prompts/tools on all the lidar tiles (after removing the confirmed and control tiles).

Given the nature of our prompts, the model scores a site:

6-8: Probable archaeological site
9-10: Definite archaeological site

For our test case, the model gave:

507 tiles a score of more than 5 (13.5% of the total tiles)
8 tiles a score of more than 8!! (0.2%)

How I prepared my data

Before we begin constructing our evals, we need to:

Compile a database of lidar tiles
Compile a list of all known earthwork and terra preta sites!

We used the following sources:

Lidar Tiles

Confirmed Archaeological Sites

(We filter these sites to be within our defined Amazon boundary.)

Control Datasets

Pre-LBA RADAMBRASIL Project Data

For sites in the Amazon with no known terra preta.

Important to highlight upfront: I tried my best to accumulate and aggregate all the datasets I could find on what archaeological sites exist already. There may be private datasets I could not find that completely invalidate everything I found. But that is something that I cannot verify. If you know any that I missed, especially in the areas my results are in, please let me know!

Constructing good evals

Lidar Evals

Now, to construct our evals, we prepared 2 lists:

Confirmed: a set of LIDAR tiles that are known to have at least one confirmed archaeological site. This gave us a set of 18 tiles (Amazon is massive, and this tells you how sparse publicly available data is!)
Control: Randomly selected 20 tiles from the set of all lidar tiles minus our confirmed set. I tried very, very hard to find a database of areas in the Amazon or LIDAR tiles that have no confirmed earthwork sites, but I couldn’t find any. Hence, we have to resort to sampling 20 random tiles from our total tiles.

I tuned my prompts on the confirmed and control tiles. We want to maximize the number of correct guesses & the average confidence score we get on the confirmed tiles and minimize it for the control tiles.

I ran a lot of experiments, and for each experiment, we simply tracked the average score on the confirmed sites and the control sites. We ran with different reasoning efforts, different max output tokens, different dem images, different prompts, etc.

Key insights:

Setting the reasoning effort to high led to worse outcomes. Average confidence score on our confirmed set decreased, and the control score increased!
We run our analysis on max tokens = 20,000. Setting a higher limit did not change anything, as the average tokens consumed per tile was around ~3500.
Using the code interpreter made the performance noticeably worse. Moreover, a lot of tiles started getting flagged as inappropriate (best guess is that the color scheme we used for our z-score normalized images looks too much like flesh when zoomed in lol)
What worked best was default settings, reasoning set to medium, giving the model the z-score normalized images, DEM terrain colored images, and a simple recipe on how to analyze it.
Note: We did not change the prompts/tools during or after our test runs.

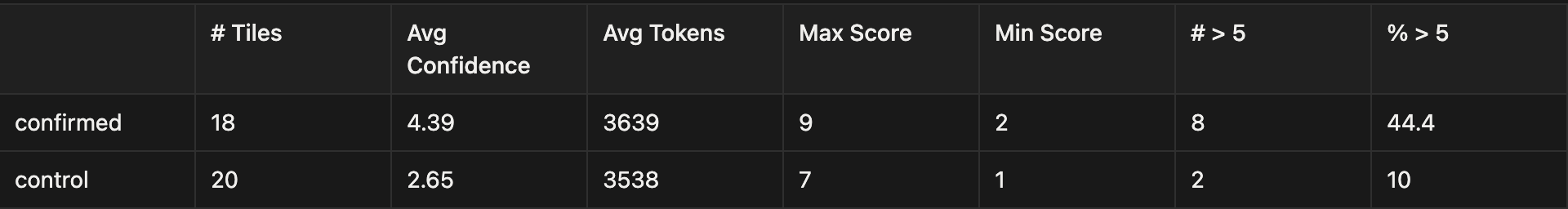

Our best eval run gave us:

Important:

A key problem I had come to realize at this point was that the quality of the data we have is not perfect at all!

We have point coordinates of known archaeological sites, not polygons! This is not ideal for earthworks
There is no temporal precision in our data. For ex: One source can say that a site exists, but they dont mention when they found it or via which dataset. This causes issues, since if we go and try to search for it now, we might be looking at newer images where land use patterns have changed!
For our control set, the biggest issue is that there is a risk of accidentally sampling a tile where the model does see a pattern!

So the most reliable way to tune my prompts when running evals was to rely a little bit on what I saw in the data. Spending time looking at JPEGs of my z-score and dem’s was very useful and a better proxy! Example:

So even though the scores might not seem fantastic to you, if you inspect the data I have provided, you will realize that the sites in the confirmed set with the highest scores most obviously have something, and when they score low, it is usually coz there wasn’t anything striking about it! The same holds for control sites!

Terra Preta Evals

My motivation for this was to see if O3 could detect signs of terra preta. What I did:

I filtered my dataset of confirmed sites to ones that were marked to have Terra Preta (ADE) in them
Then, for each site, I created a 1km x 1km square grid around it and collected a lot of information for each square grid.
I also collected a list of “control” sites, sites I know for a fact do not contain terra preta via Pre-LBA RADAMBRASIL Project Data.
I focused on analyzing the dry months of 2024, as there was a severe drought in the Amazon during that time, and my bet was that terra preta signals would be accentuated during this time. My system prompt for this goes into detail.

The agent I created had access to the following tools

get_vegetation_indices: NDVI, EVI, IRECI from Sentinel 2
1. Why: We want the model to be able to look at different vegetation indices and find patterns. It can query for different dates to enable temporal analysis. It can even look at the indices of its neighbors to get a better sense of the area. The main goal here is to establish a good baseline for the area so that the model isn’t just thinking of an imaginary forest, and to give it a sense of time by letting it explore how these indices change over time.
get_precipitation_report: We want the model to be able to see how much it rained every month in a given year in the AOI and its neighbors.

It also received the following information in the user prompt:

Information on whether there is a river within 5km of it (size 4-7)
1. This is important since terra preta sites are usually found near elevated bluffs
2. We use hydroshed dataset from GEE for this

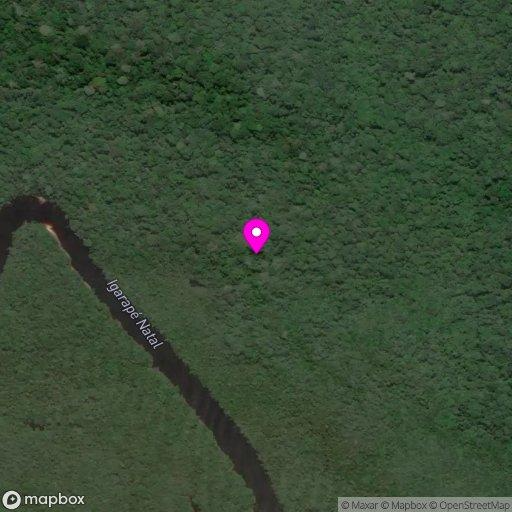

It received a Mapbox satellite image to inspect what the square grid looked like, it was forested, developed, sloped, etc.

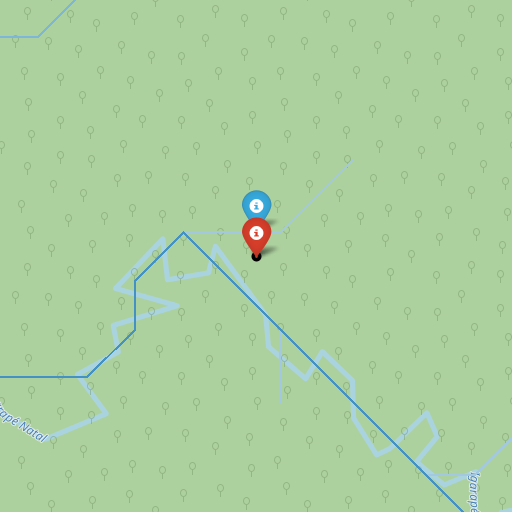

A map of its neighbors: Terra Preta detection would have to be done by recognizing unusual patterns in vegetation indices. But in order to first detect something unusual, it is critical to establish a baseline of what the forest looks like in the area. By providing it with a map of its neighbors, I let it decide which ones it wanted to inspect to establish this baseline.

The tools were made to be flexible by design. I wanted to give the model the freedom to investigate neighbors, different periods, different indices, etc.

I wanted to spend the most amount of time on the most interesting areas!

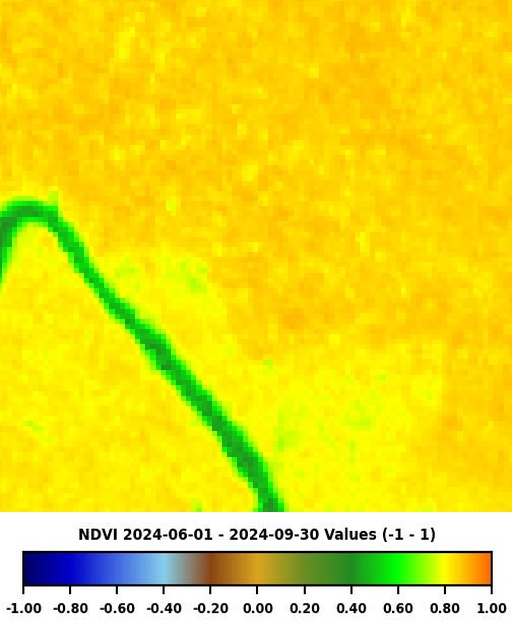

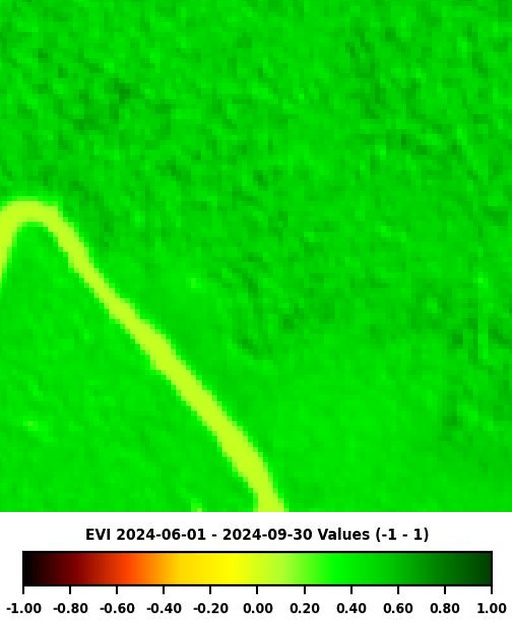

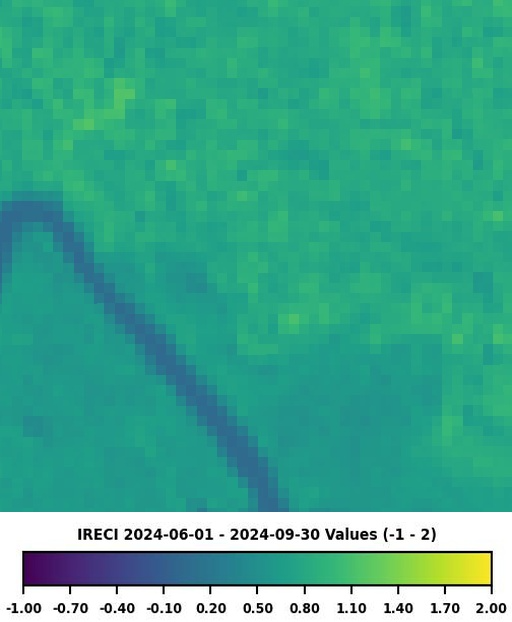

Example images of what the model saw:

(The vegetation indices are blurry because of scale issues. We’ll talk about this more below, but terra preta sites are tiny, and the best resolution we have from Sentinel 2 is 10m per pixel, and openai treats patches in 512x512)

Now, for our evals:

We have square grids that we know have terra preta, and square grids where we know there is no terra preta.
Unfortunately, when I ran this on a sample of 50 confirmed and 50 control areas, the results were 50/50.

Category Count Min Max Mean Median All Cells 99 1 6 2.99 3 Confirmed 49 1 6 2.92 3 Control 50 1 6 3 3

I believe this is either due to:

The resolution of our data is not good enough. Terra Preta sites are usually a few hectares at best, and given the scale of Sentinel 2 data, it would be a tiny fraction of the total image size
The confirmed site data was not good. As we mentioned earlier, the data we have for Amazon is not that good or precise.
My prompts aren’t performing well (I tried a lot of things to improve the evals, but couldn’t)
We are not looking at the right proxies of terra preta measurement

We did not conduct a test run, so our contribution here is to essentially show that O3 and multispectral data are very weak at detecting signs of terra preta.

Deep Research Queries

Deep research was invaluable in helping me improve my prompts and do research on the specific traits of earthworks and terra preta. I essentially created a Google Drive folder with 200+ papers that I encountered during my research and used those with deep research. I have shared a few deep research links that helped me understand how to interpret lidar data for earthworks and multispectral data for terra preta!

Link to my papers:

https://drive.google.com/drive/folders/1U7BpldZW72dT6Ru4ZG9ojmOifdnjzJIz?usp=sharing

Potential next steps

Having shown how good my pipeline is for lidar processing and detecting earthworks, it makes sense to run it on all available lidar data for the Amazon!

The only dataset (that I could find) that I did not run it on (this was too big to process)

An idea I had no time to pursue: Epidemic hypothesis

Would epidemic-related population collapses (1540-1600) have left detectable phosphorus signatures from mass burials? I wonder if hyperspectral analysis could pick up these century-old chemical scars as a proxy for lost settlements. Here’s my reasoning (and assumptions) on why mass burials/concentrated deaths likely occurred:

Historical Foundation (1540-1600): During the demographic collapse (~80% mortality from disease), normal burial practices would have broken down due to:

Overwhelming death rates outpacing traditional funeral rites
Too few healthy people to handle bodies properly
Fear of contagion (similar to Black Death and 1918 flu responses)
Bodies likely concentrated in houses (died in place) or hasty communal burials

The Phosphorus Math:

For a settlement of 5,000 people with 80% mortality concentrated in 12-15,000m^2 area: 4,000 deaths × 650g phosphorus/person = ~2,600 kg phosphorus
Amazon background: 50-200 mg/kg P
Predicted enrichment: 347 mg/kg (2-7× background) [assuming concentration in 15,000m² area, 0.5m soil depth]
Expected persistence after 500 years: 200-280 mg/kg due to Fe/Al oxide binding [based on archaeological studies showing 60-80% retention in acidic tropical soils]

(I have tried to underestimate my numbers to account for mistakes/uncertainty)

Why It Should Persist:

The acidic Amazon soils (pH 4-5) actually help preserve the signal - phosphorus binds immediately to iron/aluminum oxides, creating permanent deposits. Also, terra preta sites have significantly elevated phosphorus and those sites could be way older!

Detection Potential:

Modern hyperspectral satellites can detect 10-20% differences in soil chemistry. These epidemic signatures would be 150-250% above background - well within detection range.

Things that kill the theory (outside of my assumptions being incorrect):

Soil erosion, and other disturbances have diluted the phosphorus
No way to reliably detect phosphorus via hyperspectral imagery

Replicate

I have tried to be very careful with this, every config setting has a documented reason, code is easy to replicate and debug. Just send me an email and I'll give you the code!
